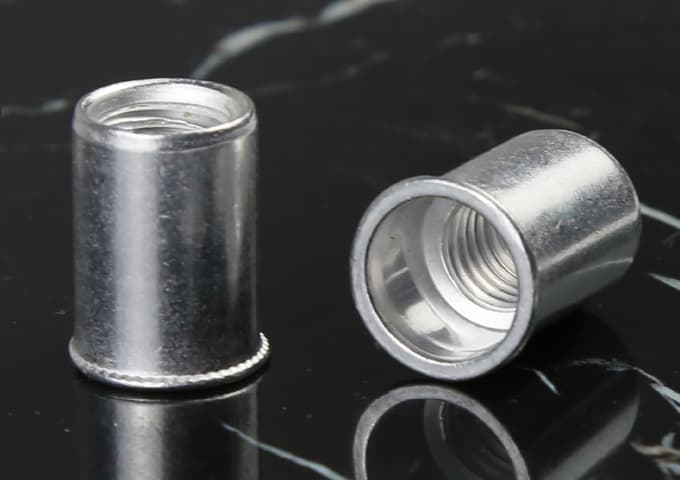

Aluminum Reduce Head Round Body Plain
Description
M4 RH-RB/AL-0420M5 RH-RB/AL-0520M6 RH-RB/AL-0625M8 RH-RB/AL-0825M10 RH-RB/AL-1030
Fasteners
rivet-nuts
aluminum
rivet-nut
Technical Specifications & Availability
Request detailed technical specifications, material certifications, and availability information for your application requirements. Our engineering team can provide product recommendations, custom specifications, and technical documentation.
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
| M4 | RH-RB/AL-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 7.0 | 0.5 | 10.5 |
| M5 | RH-RB/AL-0520 | 0.5-2.0 | 7.5 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| M6 | RH-RB/AL-0625 | 0.5-2.5 | 9.2 | 9.0 | 8.9 | 10.0 | 0.6* | 14.0* |
| M8 | RH-RB/AL-0825 | 0.5-2.5 | 10.2 | 11 .0 | 10.9 | 12.0 | 0.65* | 15.5* |
| M10 | RH-RB/AL-1030 | 1.0-3.0 | 11.5 | 13.0 | 12.9 | 14.1 | 0.7* | 17.7* |
