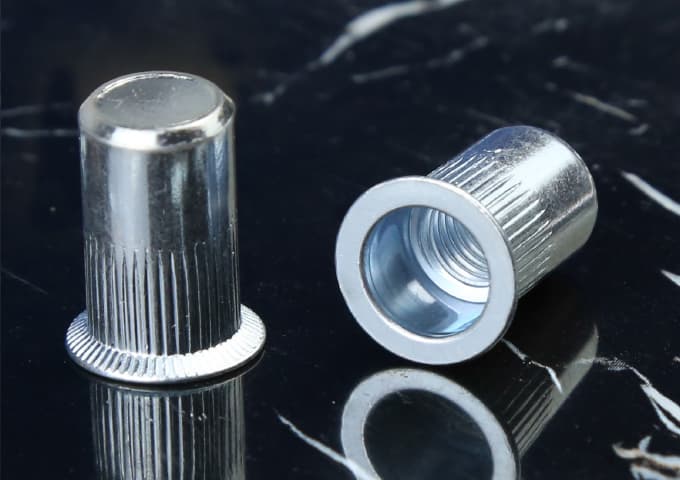

Countersunk Head Knurled Body Closed End
Description
M3 CK-KBC-0325CK-KBC-0340CK-KBC-0430CK-KBC-0450CK-KBC-0535CK-KBC-0550CK-KBC-0640CK-KBC-0660CK-KBC-0845CK-KBC-0860CK-KBC-1050CK-KBC-1065CK-KBC-1250CK-KBC-1270
Category Level 1
Fasteners
Category Level 2
iron-rivet-nut
Material
iron
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M3 | CK-KBC-0325 | 1.5-2.5 | 10.3 | 5.0 | 4.9 | 7.5 | 1.5 | 15.5 |
| 2.5-4.0 | 17.5 | |||||||
| M4 | CK-KBC-0430 | 1.5-3.0 | 12.3 | 6.0 | 5.9 | 9.0 | 1.5 | 17.5 |
| 3.0-5.0 | 19.5 | |||||||
| M5 | CK-KBC-0535 | 1.5-3.5 | 14.0 | 7.0 | 6.9 | 10.0 | 1.5 | 19.5 |
| 3.5-5.0 | 23.5 | |||||||
| M6 | CK-KBC-0640 | 1.5-4.0 | 17.5 | 9.0 | 8.9 | 12.0 | 1.5 | 23.5 |
| 4.0-6.0 | 25.5 | |||||||
| M8 | CK-KBC-0845 | 1.5-4.5 | 20.0 | 11.0 | 10.9 | 14.0 | 1.5 | 26.5 |
| 4.5-6.0 | 29.5 | |||||||
| M10 | CK-KBC-1050 | 1.5-5.0 | 21.5 | 13.0 | 12.9 | 16.0 | 1.5 | 30.0 |
| 4.5-6.5 | 32.5 | |||||||
| M12 | CK-KBC-1250 | 1.5-5.5 | 22.5 | 16.0 | 15.9 | 19.0 | 1.5 | 33.0 |
| CK-KBC-1270 | 5.5-7.0 | 35.0 |
