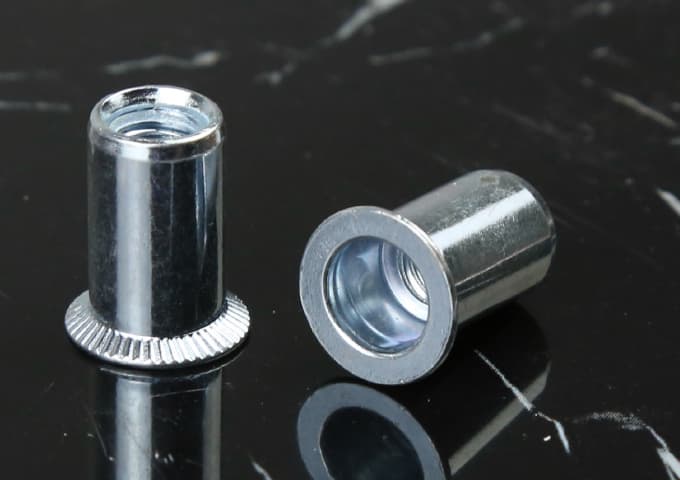

Countersunk Head Round Body Plain
Description
M3 CH-RB-0335M4 CH-RB-0430M5 CH-RB-0535M6 CH-RB-0640M8 CH-RB-0845M10 CH-RB-1050M12 CH-RB-1245
Category Level 1
Fasteners
Category Level 2
iron-rivet-nut
Material
iron
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M3 | CH-RB-0335 | 1.6-3.5 | 4.5 | 5.0 | 4.9 | 7.8 | 1.5 | 8.5 |
| M4 | CH-RB-0430 | 1.5-3.0 | 6.5 | 6.0 | 5.9 | 9.0 | 1.5 | 12.0 |
| M5 | CH-RB-0535 | 1.5-3.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.5 | 13.0 |
| M6 | CH-RB-0640 | 1.5-4.0 | 9.0 | 9.0 | 8.9 | 12.0 | 1.5 | 15.5 |
| M8 | CH-RB-0845 | 2.0-4.5 | 11.0 | 11.0 | 10.9 | 14.0 | 1.5 | 18.5 |
| M10 | CH-RB-1050 | 2.0-5.0 | 13.0 | 13.0 | 12.9 | 16.0 | 1.5 | 21.0 |
| M12 | CH-RB-1245 | 1.6-4.5 | 17.5 | 16.0 | 15.9 | 19.0 | 1.5 | 26.0 |
