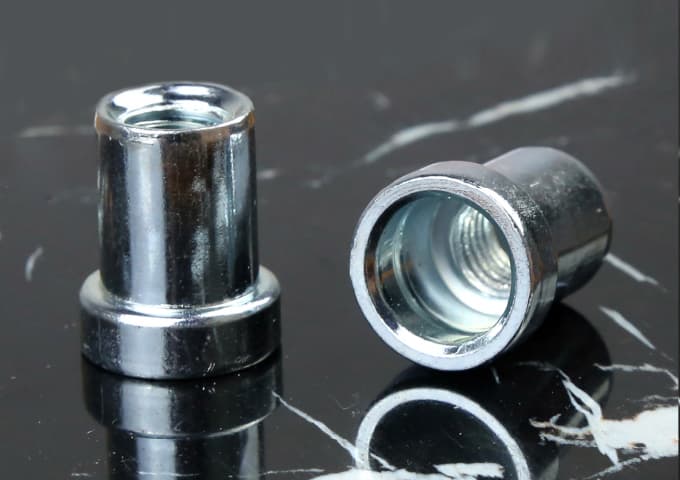

Elevator Nut
Description
M3 FHRB-TT-0630M8 FHRB-TT-0835M10 FHRB-TT-1040
Fasteners
iron-rivet-nut
iron
rivet-nut
Technical Specifications & Availability
Request detailed technical specifications, material certifications, and availability information for your application requirements. Our engineering team can provide product recommendations, custom specifications, and technical documentation.
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M3 | FHRB-TT-0630 | 1.0-3.0 | 10 | 9.0 | 8.9 | 12.0 | 5.0 | 18.0 |
| M8 | FHRB-TT-0835 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 16.0 | 6.0 | 20.0 |
| M10 | FHRB-TT-1040 | 1.0-4.0 | 12.5 | 14.3 | 14.2 | 18.0 | 6.0 | 22.5 |
Engineering & Specification Support
Fastener selection depends on application environment, load requirements, and installation constraints.
For technical drawings, detailed specifications, or application-specific engineering guidance, contact our engineering team.
