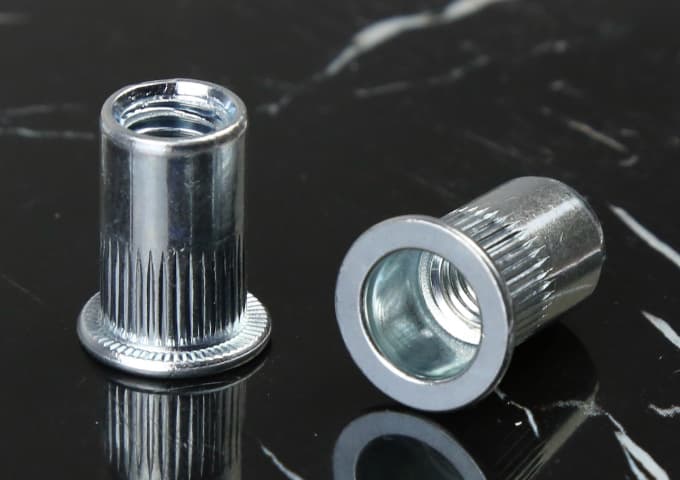

Flat Head Knurled Body
Description
M3 FH-KB-0315FH-KB-0325FH-KB-0420FH-KB-0435FH-KB-0525FH-KB-0550M6 FH-KB-0630FH-KB-0655M8 FH-KB-0835FH-KB-0860FH-KB-1040FH-KB-1065FH-KB-1035(12H)FH-KB-1060(12H)FH-KB-1240FH-KB-1265M12 FH-KB-1240(16H)FH-KB-1260(16H)
Category Level 1
Fasteners
Category Level 2
iron-rivet-nut
Material
iron
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M3 | FH-KB-0315 | 0.5-1.5 | 6.0 | 5.0 | 4.9 | 8.0 | 0.8 | 10.0 |
| 2.0-3.5 | 11.5 | |||||||
| M4 | FH-KB-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 9.0 | 0.8 | 10.5 |
| 2.0-3.5 | 12.0 | |||||||
| M5 | FH-KB-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| 2.5-5.0 | 8.5 | 16.5 | ||||||
| M6 | FH-KB-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.3(*13.0) | 1.3 | 15.5 |
| 3.0-5.5 | 10.5 | |||||||
| M8 | FH-KB-0835 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 14.5(*16.0) | 1.5 | 18.5 |
| 3.5-6.0 | 21.0 | |||||||
| M10 | FH-KB-1040 | 1.0-4.0 | 13.5 | 13.0 | 12.9 | 17.0(*19.0) | 1.7 | 21.5 |
| 4.0-6.5 | 24.0 | |||||||
| M10 | FH-KB-1035(12H) | 1.0-3.5 | 11.0 | 12.0 | 11.9 | 16.0 | 1.6 | 19.0 |
| 3.5-5.5 | 24.0 | |||||||
| M12 | FH-KB-1240 | 1.0-4.0 | 13.5 | 15.0 | 14.9 | 18.0 | 1.7 | 22.0 |
| 4.0-6.5 | 14.0 | 25.0 | ||||||
| M12 | FH-KB-1240(16H) | 1.0-4.0 | 15.0 | 16.0 | 15.9 | 22.0 | 2.0 | 25.0 |
| FH-KB-1260(16H) | 3.5-6.0 | 16.0 | 28.0 |
