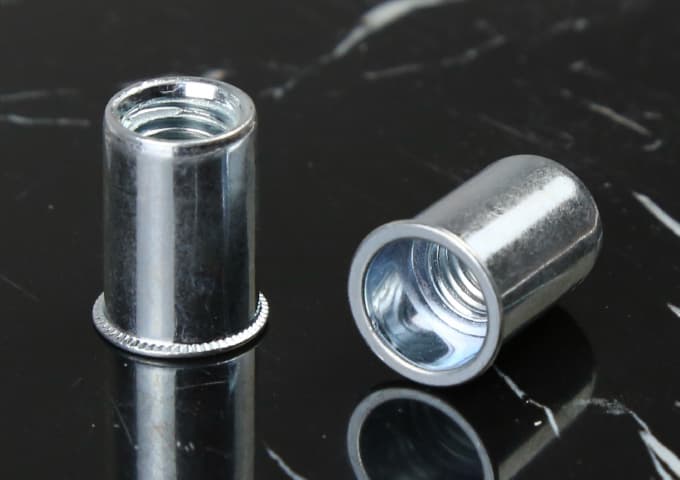

Reduce Head Round Body Plain
Description
M3 RH-RB-0315M4 RH-RB-0420RH-RB-0440RH-RB-0520RH-RB-0540RH-RB-0625RH-RB-0650RH-RB-0830RH-RB-0850RH-RB-1030RH-RB-1055RH-RB-1030(12H)
Category Level 1
Fasteners
Category Level 2
iron-rivet-nut
Material
iron
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M3 | RH-RB-0315 | 0.5-1.5 | 6.2 | 5.0 | 4.9 | 6.0 | 0.5 | 9.0 |
| M4 | RH-RB-0420 | 0.5-2.0 | 6.5 | 6.0 | 5.9 | 7.0 | 0.5 | 10.5 |
| 2.0-4.0 | 13.0 | |||||||
| M5 | RH-RB-0520 | 0.5-2.0 | 7.0 | 7.0 | 6.9 | 8.0 | 0.5 | 11.5 |
| 2.0-4.0 | 13.0 | |||||||
| M6 | RH-RB-0625 | 0.5-2.5 | 8.5 | 9.0 | 8.9 | 10.5 | 0.6 | 14.0 |
| 2.5-5.0 | 10.0 | |||||||
| M8 | RH-RB-0830 | 0.5-3.0 | 10.0 | 11.0 | 10.9 | 12.0 | 0.65 | 16.5 |
| 3.0-5.0 | 18.5 | |||||||
| M10 | RH-RB-1030 | 0.5-3.0 | 13.0 | 13.0 | 12.9 | 14.1 | 0.7 | 17.7 |
| RH-RB-1055 | 3.0-5.5 | 21.0 | ||||||
| M10 | RH-RB-1030(12H) | 0.5-3.0 | 12.5 | 12.0 | 11.9 | 13.0 | 0.7 | 18.0 |
