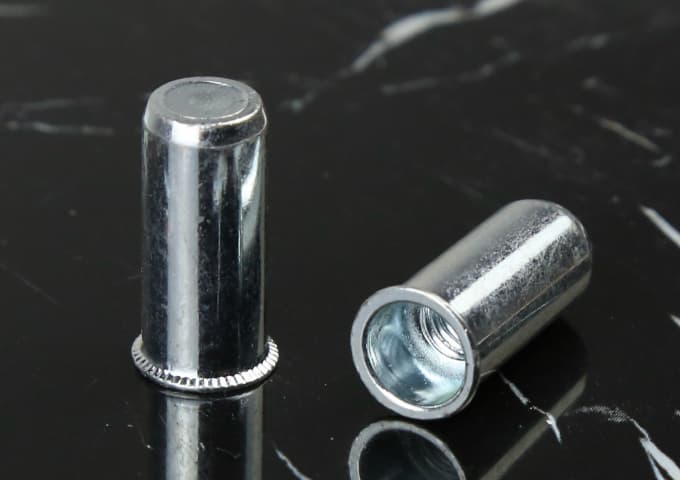

Reduce Head Round Body Plain Closed End
Description
M4 RH-RBC-0420RH-RBC-0435RH-RBC-0520RH-RBC-0535RH-RBC-0625RH-RBC-0640RH-RBC-0830RH-RBC-0845RH-RBC-1030RH-RBC-1050
Category Level 1
Fasteners
Category Level 2
iron-rivet-nut
Material
iron
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size ﹢0.1 0 | D | B | K | L |
| M4 | RH-RBC-0420 | 0.5-2.0 | 11.0 | 6.0 | 5.9 | 7.0 | 0.5 | 15.0 |
| 2.0-3.5 | 16.0 | |||||||
| M5 | RH-RBC-0520 | 0.5-2.0 | 12.5 | 7.0 | 6.9 | 8.0 | 0.5 | 16.5 |
| 2.0-3.5 | 17.5 | |||||||
| M6 | RH-RBC-0625 | 0.5-2.5 | 15.5 | 9.0 | 8.9 | 10.0 | 0.6 | 20.5 |
| 2.5-4.0 | 22.0 | |||||||
| M8 | RH-RBC-0830 | 0.5-3.0 | 17.0 | 11.0 | 10.9 | 12.0 | 0.65 | 23.0 |
| 2.5-4.5 | 24.5 | |||||||
| M10 | RH-RBC-1030 | 1.0-3.0 | 18.2 | 13.0 | 12.9 | 14.1 | 0.7 | 24.5 |
| RH-RBC-1050 | 3.0-5.0 | 26.0 |
