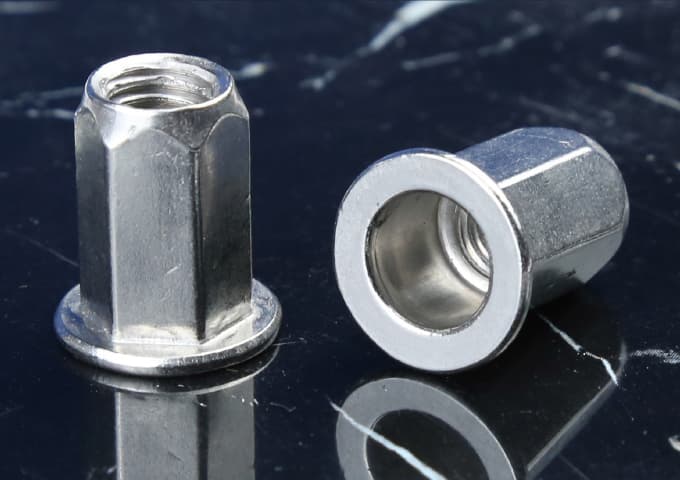

Stainless Steel Flat Head Full Hex Body
Category Level 1
Fasteners
Category Level 2
stainless-steel-series
Material
stainless-steel
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
| M3 | FH-FHB/SS-0325 | 0.5-1.5 | 5.5 | 5.0 | 4.9 | 7.5 | 0.8 | 8.5 |
| M4 | FH-FHB/SS-0420 | 0.5-2.0 | 6.5 | 6.0 | 5.9 | 9.0 | 0.8 | 11.0 |
| M5 | FH-FHB/SS-0525 | 0.5-2.5 | 8.0 | 7.0 | 6.9 | 10.0 | 1.0 | 14.0 |
| M6 | FH-FHB/SS-0630 | 0.5-3.0 | 8.5 | 9.0 | 8.9 | 12.7(*13.0) | 1.35 | 15.0(*16.0) |
| M8 | FH-FHB/SS-0835 | 1.0-3.5 | 10.5 | 11.0 | 10.9 | 16.0 | 1.5 | 18.0 |
| M10 | FH-FHB/SS-1035 | 1.0-3.5 | 12.5 | 13.0 | 12.9 | 18.0(*19.0) | 1.7 | 21.0(*23.0) |
| M10 | FH-FHB/SS-1035(12H) | 1.0-3.5 | 13.5 | 12.0 | 11.9 | 18.0 | 1.7 | 21.0 |
| M12 | FH-FHB/SS-1240(15H) | 1.0-4.0 | 14.0 | 15.0 | 14.9 | 20.0 | 1.7 | 23.0 |
| M12 | FH-FHB/SS-1250(16H) | 2.0-5.0 | 16.5 | 16.0 | 15.9 | 23.0 | 2.0 | 27.0 |
