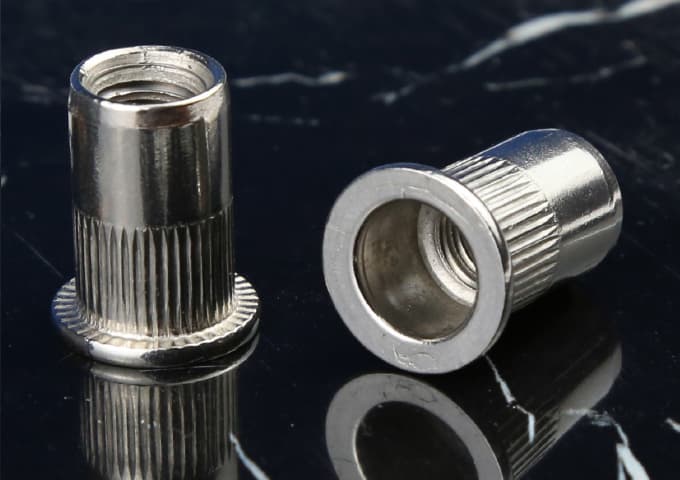

Stainless Steel Flat Head Knurled Body
Description
M3 FH-KB/SS-0315M4 FH-KB/SS-0420 FH-KB/SS-0440M5 FH-KB/SS-0525 FH-KB/SS-0540M6 FH-KB/SS-0630 FH-KB/SS-0650M8 FH-KB/SS-0835 FH-KB/SS-0855FH-KB/SS-1040 FH-KB/SS-1060M10 FH-KB/SS-1040 FH-KB/SS-1060
Fasteners
stainless-steel-series
stainless-steel
rivet-nut
Technical Specifications & Availability
Request detailed technical specifications, material certifications, and availability information for your application requirements. Our engineering team can provide product recommendations, custom specifications, and technical documentation.
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 | D +0.07 -0.1 | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 | D +0.07 -0.1 | B | K | L |
| M3 | FH-KB/SS-0315 | 0.5-1.5 | 5.0 | 5.0 | 4.9 | 8.0 | 0.8 | 9.0 |
| M4 | FH-KB/SS-0420 FH-KB/SS-0440 | 0.5-2.0 2.0-4.0 | 6.5 | 6.0 8.0 | 5.9 | 9.0 | 0.8 | 10.5 12.0 |
| M5 | FH-KB/SS-0525 FH-KB/SS-0540 | 0.5-2.5 2.0-4.0 | 8.0 8.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 15.0 |
| M6 | FH-KB/SS-0630 FH-KB/SS-0650 | 0.5-3.0 3.0-5.0 | 9.2 10.5 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 19.5 |
| M8 | FH-KB/SS-0835 FH-KB/SS-0855 | 1.0-3.5 3.5-5.5 | 11.5 | 11.0 | 10.9 | 14.5 | 1.5 | 18.5 21.5 |
| M10 | FH-KB/SS-1040 FH-KB/SS-1060 | 1.0-4.0 4.0-6.0 | 13.5 | 13.0 | 12.9 | 17.0 | 1.6 1.7 | 21.0 24.0 |
| M10 | FH-KB/SS-1040 FH-KB/SS-1060 | 1.0-4.0 4.0-6.0 | 15.0 16.0 | 16.0 | 15.9 | 23.0 | 2.0 | 25.0 28.0 |
Engineering & Specification Support
Fastener selection depends on application environment, load requirements, and installation constraints.
For technical drawings, detailed specifications, or application-specific engineering guidance, contact our engineering team.
