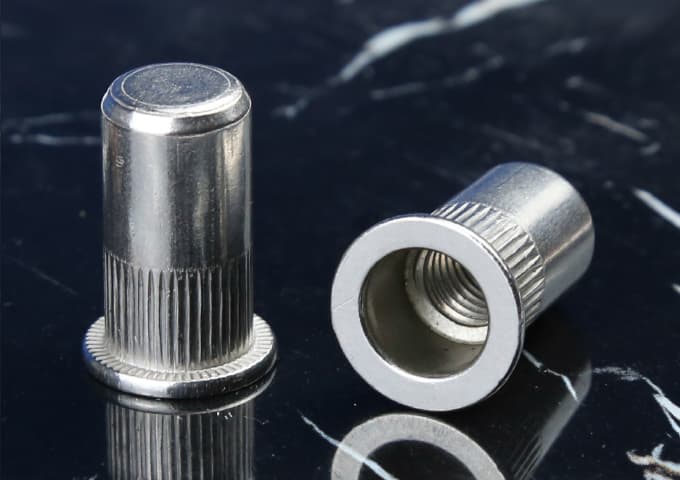

Stainless Steel Flat Head Knurled Body Closed End
Description
D +0.07 -0.1BKLM3FH-KBC/SS-0315M4FH-KBC/SS-0420 FH-KBC/SS-0440FH-KBC/SS-0525 FH-KBC/SS-0540FH-KBC/SS-0630 FH-KBC/SS-0650FH-KBC/SS-0835 FH-KBC/SS-0855FH-KBC/SS-1040 FH-KBC/SS-1060FH-KBC/SS-1240 FH-KBC/SS-1260
Category Level 1
Fasteners
Category Level 2
stainless-steel-series
Material
stainless-steel
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 0 | D +0.07 -0.1 | B | K | L |
| M3 | FH-KBC/SS-0315 | 0.5-1.5 | 8.0 | 6.0 | 5.9 | 8.0 | 0.8 | 13.0 |
| M4 | FH-KBC/SS-0420 FH-KBC/SS-0440 | 0.5-2.0 2.0-4.0 | 11.8 | 6.0 | 5.9 | 9.0 | 0.8 | 16.0 18.0 |
| M5 | FH-KBC/SS-0525 FH-KBC/SS-0540 | 0.5-2.5 2.0-4.0 | 12.0 | 7.0 | 6.9 | 10.0 | 1.0 | 17.0 19.0 |
| M6 | FH-KBC/SS-0630 FH-KBC/SS-0650 | 0.5-3.0 3.0-5.0 | 12.7 | 9.0 | 8.9 | 12.3 | 1.3 | 19.2 21.0 |
| M8 | FH-KBC/SS-0835 FH-KBC/SS-0855 | 1.0-3.5 3.5-5.5 | 14.2 14.8 | 11.0 | 10.9 | 15.0 14.5 | 1.5 | 21.5 24.0 |
| M10 | FH-KBC/SS-1040 FH-KBC/SS-1060 | 1.0-4.0 4.0-6.0 | 18.0 19.2 | 13.0 | 12.9 | 17.0 | 1.6 1.7 | 27.0 30.0 |
| M12 | FH-KBC/SS-1240 FH-KBC/SS-1260 | 1.0-4.0 4.0-6.0 | 29.5 | 16.0 | 15.9 | 23.0 | 1.8 2.0 | 30.0 33.0 |
