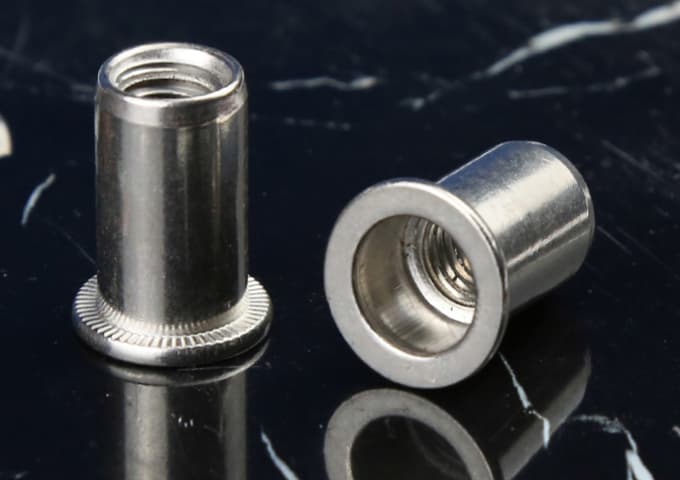

Stainless Steel Flat Head Round Body Plain
Description
M4 FH-RB/SS-0420M5 FH-RB/SS-0525M6 FH-RB/SS-0630M8 FH-RB/SS-0835M10 FH-RB/SS-1040
Category Level 1
Fasteners
Category Level 2
stainless-steel-series
Material
stainless-steel
Type
rivet-nut
Need Pricing & MOQ?
Get instant quotes, minimum order quantities, and product catalogs. Our team responds within 24 hours.
24h Response Time
Free Catalog
Custom MOQ Available
Technical Specifications
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 | D +0.07 -0.1 | B | K | L |
|---|---|---|---|---|---|---|---|---|
| Thread | P/N | T(GRIP RANGE) Min Max | A Rer | Hole Size +0.1 | D +0.07 -0.1 | B | K | L |
| M4 | FH-RB/SS-0420 | 0.5-2.0 | 6.0 | 6.0 | 5.9 | 8.5 | 0.8 | 10.5 |
| M5 | FH-RB/SS-0525 | 0.5-2.5 | 7.5 | 7.0 | 6.9 | 10.0 | 1.0 | 13.0 |
| M6 | FH-RB/SS-0630 | 0.5-3.0 | 9.2 | 9.0 | 8.9 | 12.3 | 1.3 | 15.5 |
| M8 | FH-RB/SS-0835 | 1.0-3.5 | 11.5 | 11.0 | 10.9 | 15.0 | 1.5 | 18.5 |
| M10 | FH-RB/SS-1040 | 1.0-4.0 | 12.5 | 13.0 | 12.9 | 17.0 | 1.6 | 21.0 |
